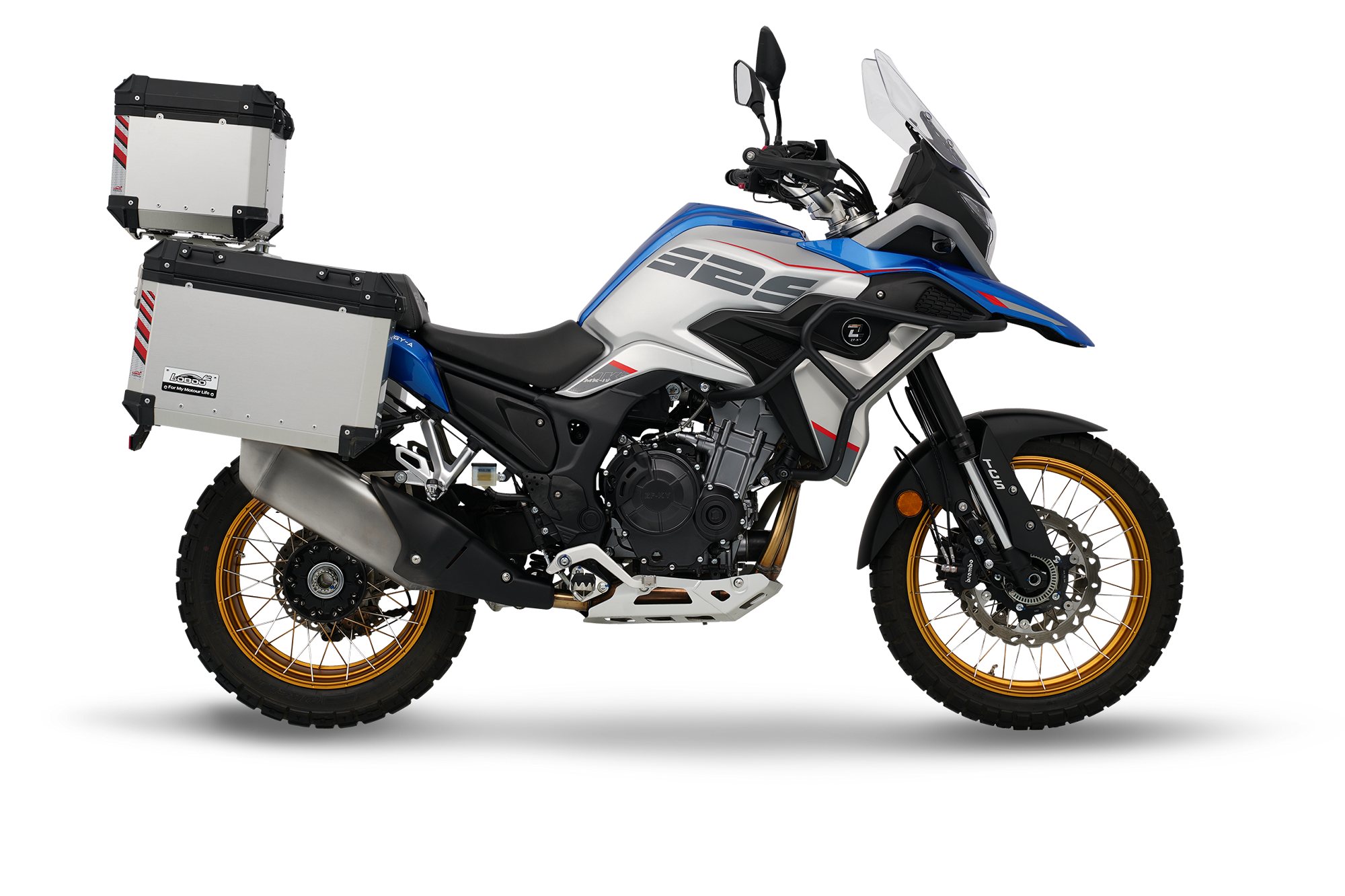

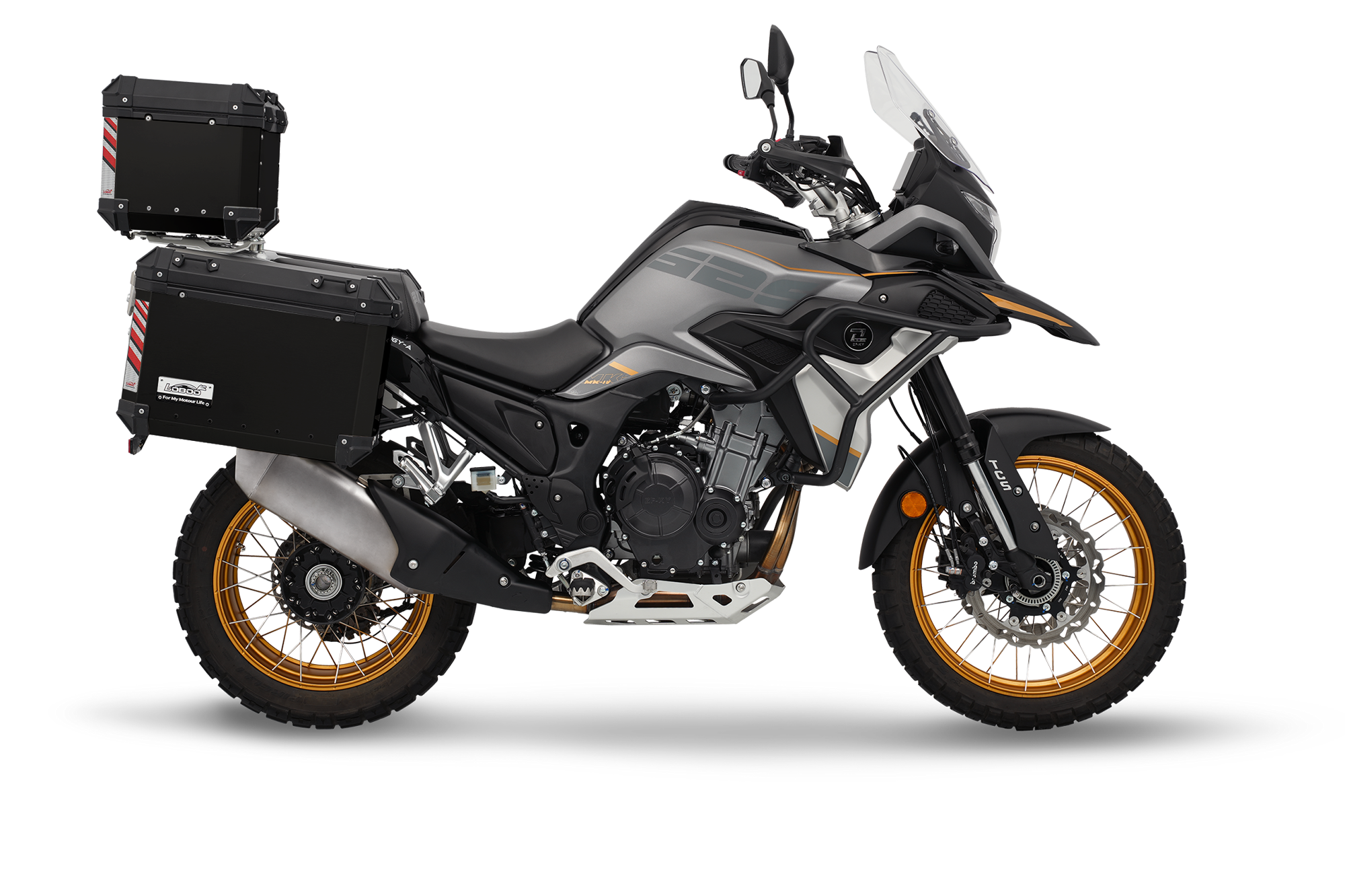

525X

COLOR

TECHNICAL DETAILS
  • 525X
  • Dimension
  • Engine
  • Chassis
  • Length X Width X Height2260×945×1390mm
  • Wheelbase1470mm
  • Seat height820mm
  • Tank capacity20L
  • Curb weight215kg(with 3 cases)
  • Ground clearance210mm
  • Engine typeTwin-cylinder/water-cooled/DOHC
  • Displacement494cc
  • Bore x stroke68×68mm
  • Compression ratio11.5:1
  • Max. power39.6kW/8500rpm
  • Max. torque50.5N·m/7000rpm
  • Fuel supplyEFI
  • Max. speed170km/h
  • Fuel consumption4.2L/100km
  • Front suspensionAdjustable preload/damping
  • Rear suspensionAdjustable preload/damping
  • Suspension travelFront: 195mm/Rear: 200mm

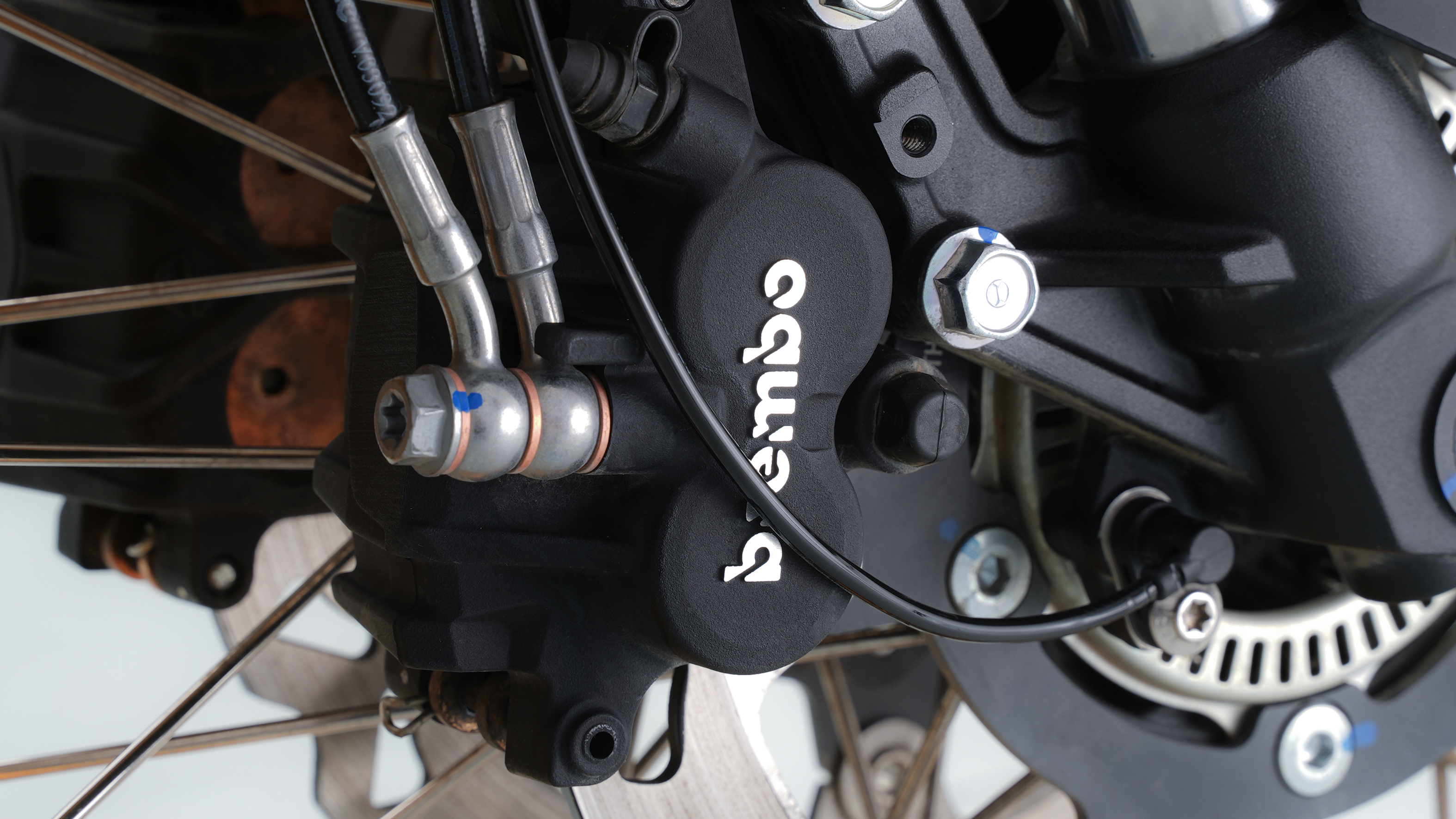

  • Front brake2-disc, 2-piston calliper/ABS
  • Rear brake1-disc, 2-piston calliper/ABS
  • Front tire 110/80 R19
  • Rear tire150/70 R17
  • Steering angle38°
  • Rake angle25.5°
  • InstrumentionTFT
CONQUER THE UNKNOWN
Unleash the Wild

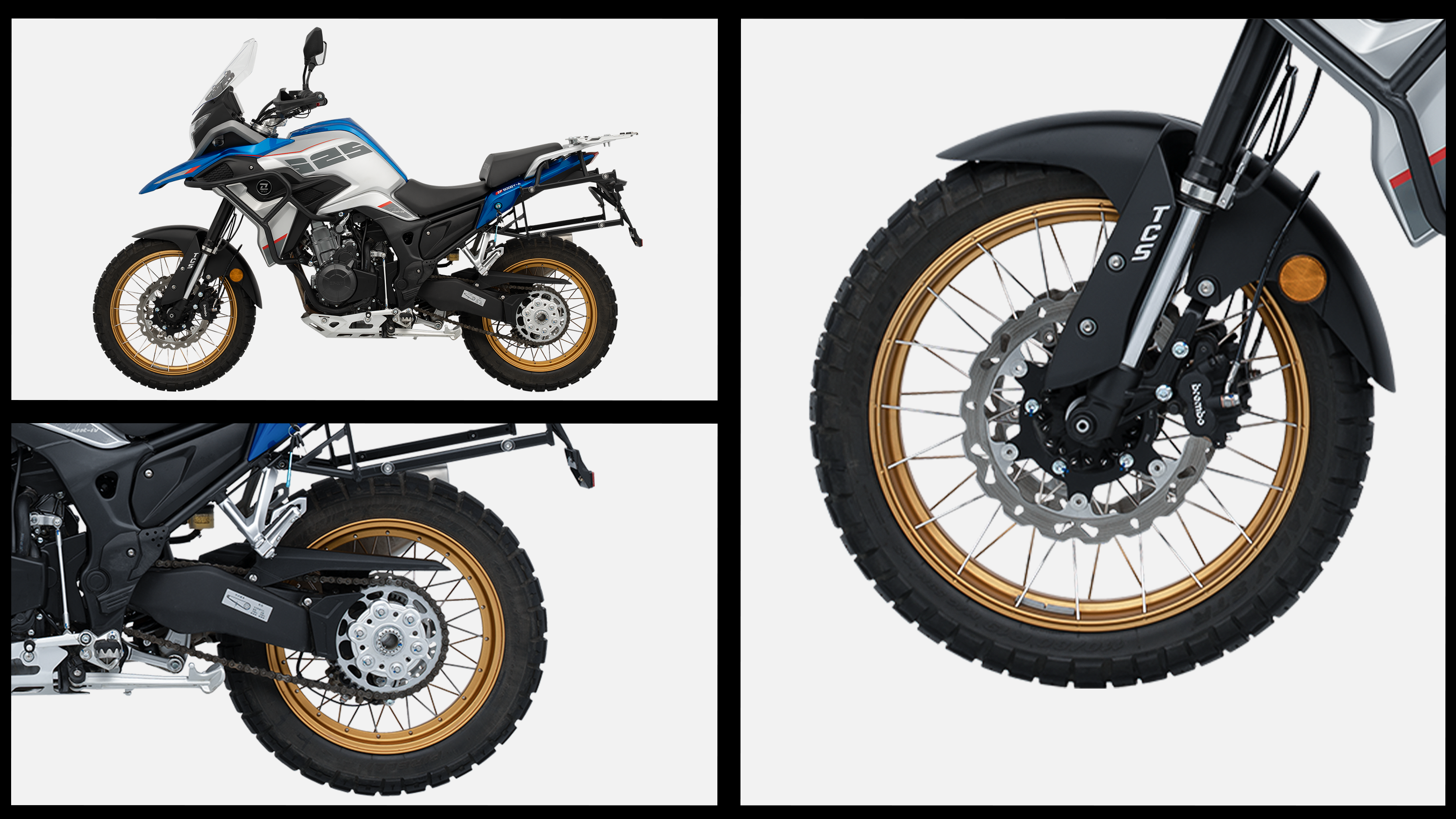

—Pirelli SCORPION RALLY STR all-terrain tires, 19” front / 17” rear

—KYB fully adjustable preload/damping suspension, with an ultra-long 195/200mm travel

—Go wild without hitting the bottom

—Built-in aluminum alloy skid plate, with 210mm minimum ground clearance

—Lightweight yet strong aluminum alloy rear swingarm

Safety Meets Power
Ride with Comfort

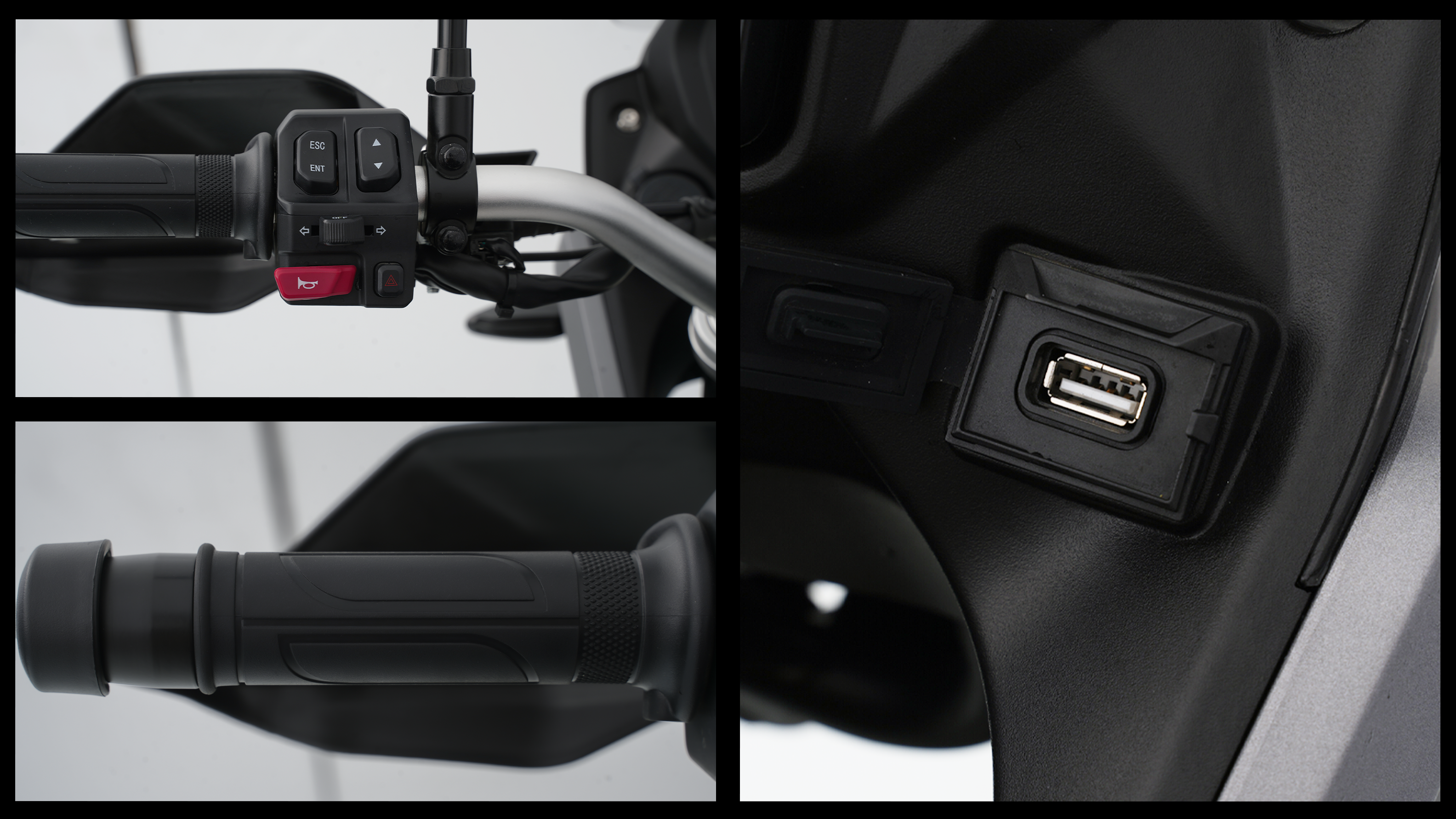

Attention to Every Detail
